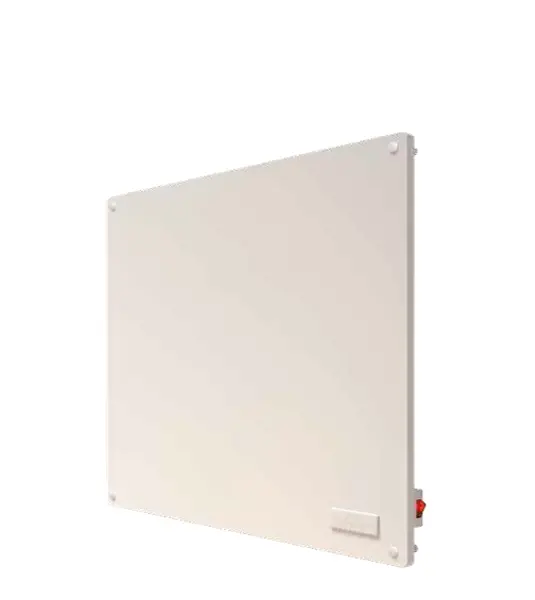

The Heating Expert Wall Panel Heater (ECONO – 400)

Model No. : ECONO – 400

The ECONO-HEAT eHeater™ wall panel heater is constructed from asbestos-free fibre-cement board with element wire laminated between the two boards. A two metre length cable is joined to the element wire in a custom-designed housing in one corner.

NATURAL CONVECTION TECHNOLOGY Heat is mainly generated behind the heater in the space between the panel and the wall, which leads to an efficient up-draught of heat circulated into the room (the heated air comes out from behind the heater at the speed of 0.7m per second!). This principle of natural convection means that about 90% of the heat in the room comes from the back of the panel, while only 10% is radiated from the front. Convection heating (room heater) is far more effective than radiated heating (space heater).



Features and Benefits:

• Economical – Inexpensive to acquire, inexpensive to run
• Effective – Only 400 Watts heats a room of approximately 8m2
• Energy saving – Save up to 50% on your heating costs (save up to 70% when compared to a 1000 Watt heater)
• Eco-friendly – Contains no harmful chemicals or metals
• Safer – Non-flammable. Non-combustible
• Whole room heater as opposed to other space heaters.
• Uses natural and efficient convection technology to heat a whole room
• Can be painted to suit the décor of the room
• Silent, ultra slim and compact design. Out-of-the-way wall mounting design
• Safer for children and pets – no exposed elements, gas, fans or flames
• No drying of the air. No oxygen burnt up
• Works silently during operation
• Offers warm, silky background heat
• Quick and easy to install with the new patented
• Econo-Kit (hard and soft walls)
• Discreet On/Off switch
• Low thermal conductivity prevents injury if accidentally touched.
• Safer for children and pets.
• No exposed element wires, gas or fans.
• No drying of the air.
• Digital Thermostat with remote control as optional.

---

Technical Specifications:

Coverage Area : Approx. 8 – 12 m2

Electricals :
Power           : 1000 W
Volt               : 220V, 1pH
Frequency   : 50 Hz

Physical :
Size                   : 600 x 1200 x 20 mm
Nett. Weight    : 4.3 Kgs.

---

Warranty: 12 months

1. Warranty :
– Warranty applies from the date of tax invoicing. Original Tax Invoice is required for any warranty claim.
– Warranty applicable as per manufacturer standard terms of conditions.
2. Actual product may vary as in picture displayed.
3. Manufacturer may change the specifications at any time.
