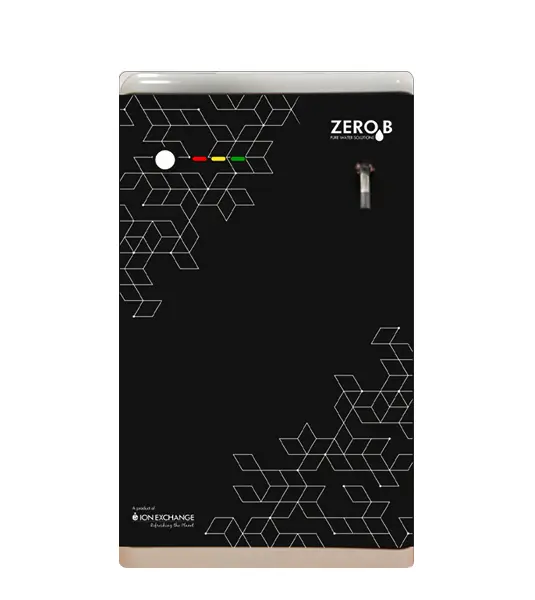

ZeroB UV Lite - Ultraviolet (UV) Water Purifier

ZeroB UV Lite - ZeroB introduces a new UV water purifier redefining the treated water’s purity and security. Ultraviolet disinfection is a well-accepted natural, non-chemical, environmentally safe technique for purifying physical & biologically contaminated waters. A complete water purification system that has an Electronics circuit that detects the current drawn by the UV lamp. It will allow the water to flow only if the UV lamp is ON. If the lamp fails to glow for any reason, the water flow will stop thereby always ensuring to give pure or no water.



Next Gen UV Technology that paralyses disease-causing bacteria & viruses by disrupting genetic cell



LED Smart Indicator

• Indicates the good health of water purifier & water quality.
• POWER ON - A Red LED will be activated to indicate "Power" is ON
• PROCES ON - A Yellow LED will glow indicating the "Process" ON
• READY ON - A Green LED will glow indicating along with the Buzzer twice, the unit is "Ready" to dispense purified water.
• UV FAIL - Yellow LED blinks with continuous buzzer beeping
• Green LED Blinks - When no demand of purified water and dispense switch is in OFF situation, after delay time, UV automatically shuts OFF and Green LED blinks continuously.



Stages of Purification

SEDIMENT CARTRIDGE

Sediment Cartridge (5-10 micron) in this stage filters out fine suspended impurities from water and hence offers high clarity to water.



ACTIVATED CARBON FILTER

This Bacteriostatic Activated Carbon Filter (High grade silver impregnated carbon) removes organic impurities, carcinogenic chemical (such as VOC and THMs), chlorine, color and odor from water. This makes the water crisper to taste.



UV PURIFICATION

This highly filtered water passes through UV Purification chamber. UV purifier deactivates/paralyses disease causing bacteria and viruses by disrupting genetic cell material. UV disinfection does not form toxic disinfection by products & provides safe nonchemical disinfection.



---

Technical Specification

INLET WATER CONDITION

• Inlet pressure: 0.5 to 2 Kg/cm2
• Feed water TDS (PPM): Upto 500
• Suspended solids (PPM): Less than 5
• Turbidity (NTU): Less than 3
• Total hardness (PPM): Upto 300
• Free chlorine (PPM): Nil
• Silica (PPM): Less than 20
• Iron and manganese (PPM): Nil
• Oil & Grease (PPM): Nil
• Purification flow rate: Up to 1 liter/min
• Product water: Conforms to USEPA standards with respect to bacteria & viruses



ELECTRIC SUPPLY

• Operating Voltage: 230+10% VAC
• Power consumption: 20 Watts



PURIFICATION STAGES

• Sediment filtration: Dedicated filter of 5-10Micron rating
• Carbon filtration: Silver impregnated activated carbon filter
• UV lamp: 11 Watts



INDICATIONS

• Power LED: Red
• Process LED: Yellow
• Ready LED: Green
• Purified water: Dispense button
• UV fail: Yellow LED blinks along with continuous buzzer
• Product Dimension in mm (DX W X H): 140 x 240 x 400
• Product net weight: 4Kg

Warranty: 1 Year on Product
